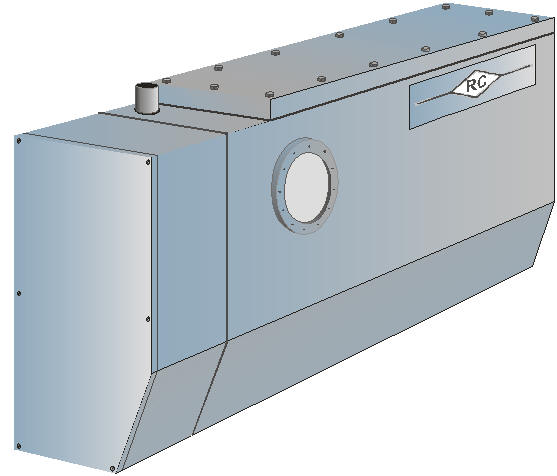

TYPE : HORIZONTAL
Models Available :
- Slim Line ( Wall
mounted )
- Floor Mounted
CONSTRUCTION : MADE FROM M.S / S.S. SHEET (304) ,WELDED
CONSTRUCTION STEAM OUTLET NOZZLE, TOP OPEN ABLE WITH S.S. BOLTS.
INSULATION : 25 mm
THICK FIBER GLASS WOOL ( 150 CROWN ) AND CLADDING WITH 0.5 mm G.I. SHEET.
CONTROLS : LOW
WATER LEVEL CUTOUT WITH S.S. BALL , FLOAT VALVE WITH S.S. BALL , SITE
GLASS , THERMOSTATS , MAGNESIUM ANODE INSIDE THE TANK WHICH RESISTS THE
ILL
EFFECTS OF IMPURITIES , THUS INCREASING THE LIFE OF HEATER .. . .
WIRING : DULY FACTORY WIRED WITH COPPER BUS BAR CONNECTION.
NOTE : 0.5 K.W.
ADDITIONAL HEATER WITH THERMOSTAT TO MAINTAIN TEMPERATURE
